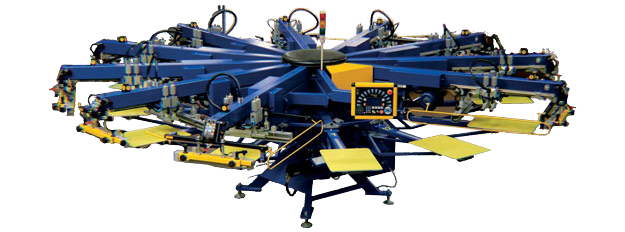

Spectrum

The Spectrum with its maximum number of colors and print area covers most of European screen printers’ demands. Printable image area is 51 x 51 cm (20 x 20″), while number of print heads range from 6 to 12 colors. The standard Spectrum is equipped with servo indexer rotation system, AC driven print heads and pneumatic lifting. This highly reliable design is engineered to maximize efficiency of the servo indexing system’s inertial forces.The Spectrum offers considerable flexibility with your choice of two styles of screen mounting systems, side screen clamping or front-rear screen clamping.

Quick-Change pallet system with fast sliding pallets and pallet locator makes pallet placement easy. Standard pallets measure 41 x 56 cm (16 x 22″).

Spectrum is a fast, reliable, and durable machine. Each head is equipped with a full function membrane panel keypad with the ability to control all major motions and head features without the need to return to the mainpanel. With the front-rear screen clamping style we find 4 axis precise micro adjustments and swiveling front head clamp design which provides excellent control over screen placement and easy flash unit access. Flash unit is automatically recognized by the software the moment it is connected to the print head. There is no need to return to the main control panel to assign the flash to any head. Flash recognition is a standard feature because we understand that set-up time is important to every operator.

Advanced safety system for operator protection includes:

  • Clear indication light tower system
  • Inter-station safety bars with 2 motion disabling side bars for operator position
  • Floor-mounting solid bar limits access to danger zone for operator while LOADING and UNLOADING

Spectrum has advanced software that includes MULTI-PRINT FLASHING and SEQUENCING features; combine this with quartz flashes to produce the highest printing and curing efficiency.

STANDARD FEATURES

Rotation

  • Precise servo driven rotation
  • Parameterized for different pallet weights ensuring smooth rotation
  • Bi-directional rotation – Clockwise and Counter-Clockwise
  • Servo driven indexing in combination with multi-print f lashing saves a print position

Lifting

  • Precision servo drive with tension spring
  • Precisely set the central off-contact enables reliable repeatability in each cycle
  • Combined with SEQUENCING feature creates 3-D print possibility

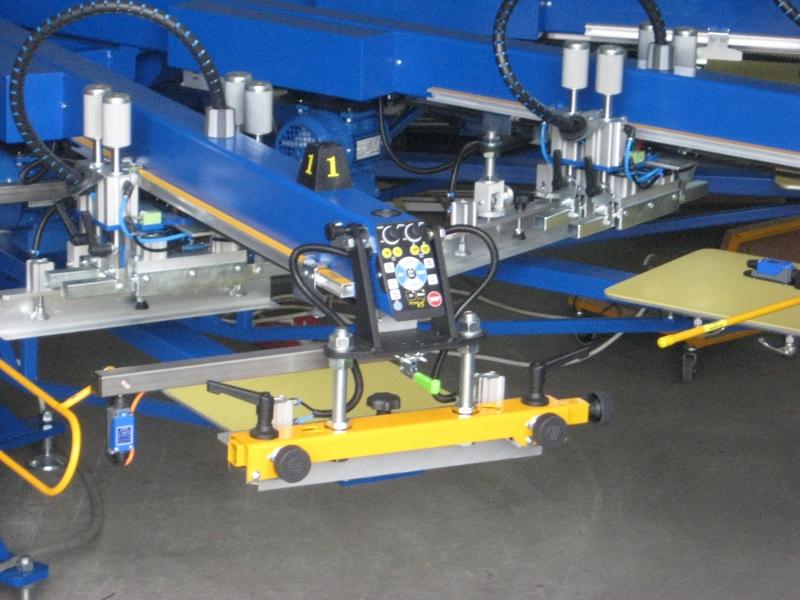

Print Head

  • Membrane panel with full control of all head functions and machine motion movements
  • AC driven print stroke with frequency converter for speed and torque control
  • Longest serial equipped print stroke – full stroke length dependent on machine size
  • Inner and outer print stroke adjustment with fault proof carriage system – eliminates possibility of head crash
  • Constant print area rule – which allows the printer to pass along characteristics of print length to width and vice versa

Advanced Programming Functions

  • Software is constantly upgraded according to printers suggestions (We gladly listen to your comments, as they help us create a better screen printing tool and help us grow as a manufacturer!)

Screen Locks

  • Pneumatic screen locks controlled directly from every print head
  • Additional manual clamps for increased screen pressure

Registration

  • Division tolerance is extremely accurate because we understand that proper registration is directly responsible for print quality
  • Upper division has an acceptable range of +/-0,01 mm
  • Printing point on pallets has maximum deviation of +/- 0,025 mm.
  • The numbers above ensure maximum accuracy for textile screen printing and also enables accuracy for other specialty materials and surface printing
  • Front micro-alignment with 3 axis
  • Rear micro-alignment with 1 axis
  • Fast print alignment with floor light pallet

Squeegee and Flood Bar

  • Independent settings for squeegee and flood bar
  • Fast and simple squeegee and flood bar angle adjustment
  • Single touch fast squeegee and flood bar locks

Warranty and Service

  • 2 year warranty
  • Service agreement with special conditions

Additional Options

  • Single touch fast squeegee and f lood bar locks
  • Special upper wheel design to fit through 80cm (30″ doors)
